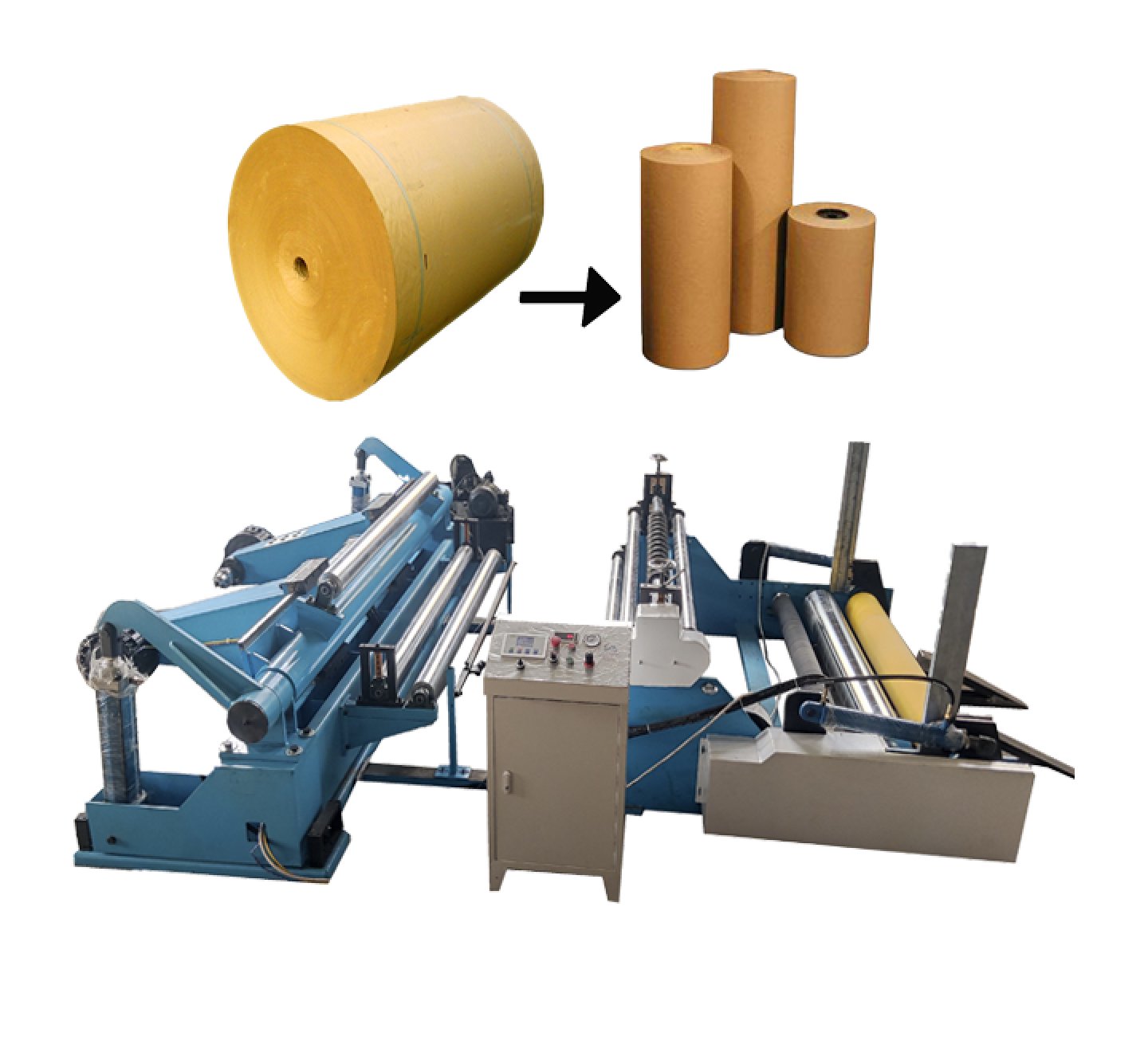

This economic paper rewinder machine is applied to slit jumbo paper roll into small rolls. The economic paper rewinder machine adopt ordinary brake and it has the features of easy using and good performance.
TECHNOLOGY:
DimensionModel | SANSR-1600 |
Max. working width | 1600mm |
Min. working width | 600mm (min 400mm only for special order) |
Max. diameterof jumbo roll | 1300mm |
Paper specification | 125gsm-600gsm |
Core diameter of raw paper roll | 3" (76mm) or 4" (100mm) (as per order) |
Quantity of blades | 16 |
Rewinding speed | 0-140m/min |
Dimension | 3800×2600×1200mm |
ADVANTAGES:
1) Hydraulic paper stand, easy for loading paper roll.
2) Automatic centering system, small tolerance.
3) Suspended tension system. Keep the tension steady.
4) Heavy body with steady performance.
5) Separate the rolls with Min.1-2mm distance to avoid adhesion.
6) Single bottom roller rewinding system. Easy for unloading.
PRODUCT DETAILS:
APPLICATION:
The machine is designed to cut large rolls of paper to the width required for a specific application. It is equipped with a sharp blade capable of cutting paper with great precision. The machine is also capable of rewinding the cut paper into smaller rolls to provide a usable finished product.
One of the main applications for the paper slitting and rewinding machine is in the manufacture of packaging materials. The machine can be used to manufacture custom sized packaging materials that can be used to package a wide range of products. For example, the production of surface paper for paper edge protector .
PACKAGING & SHIPPING:
●Packaging Details: Film+ honeycomb board packing.
●Delivery Detail: Shipped in 30 days after payment.
OUR SERVICES:
√ One year guarantee for whole machine, all life follow-up service.
√ 24 hours technical support by email.
√ Technicians oversea set-up and workers training.
√ Use- friendly English for operation system.
